【導讀】我們常用的村田電容型號中包含了這個型號的各個屬性參數,下面我們就介紹一下村田電容的溫度電壓和精度屬性規則介紹。

我們常用的村田電容型號中包含了這個型號的各個屬性參數,下面我們就介紹一下村田電容的溫度電壓和精度屬性規則介紹。

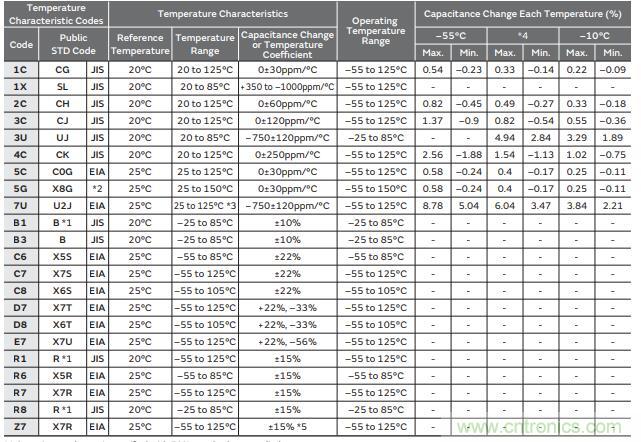

溫度特性如下表:

1、電容變化規定為額定電壓為50%。
2、村田溫度特性碼。
3、額定電壓100Vdc max:25至85°C
4、 -25°C(參考溫度20°C)/ -30°C(參考溫度25°C)
5、額定電壓為50%時的電容變化率范圍(詳見規格表)

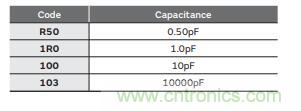

容值:

由三位數的字母數字表示。 單位是皮法(pF)。第一個和第二個數字是有效數字,第三個數字figure表示跟隨兩者的零的數量數字。 如果有小數點,則以大寫字母表示字母“R” 在這種情況下,所有數字都是有效數字。如果包含除“R”之外的任何字母,則表示該字母表特定部件號是非標準部件。

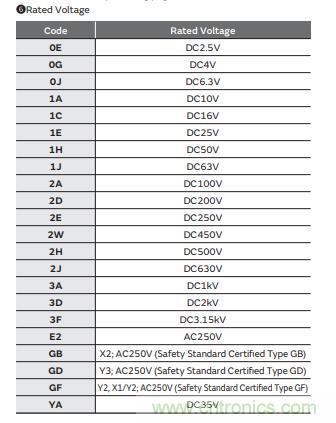

電壓:

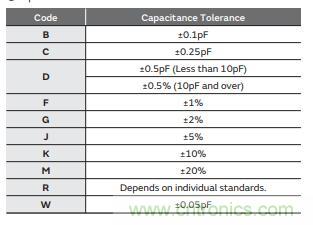

精度:
